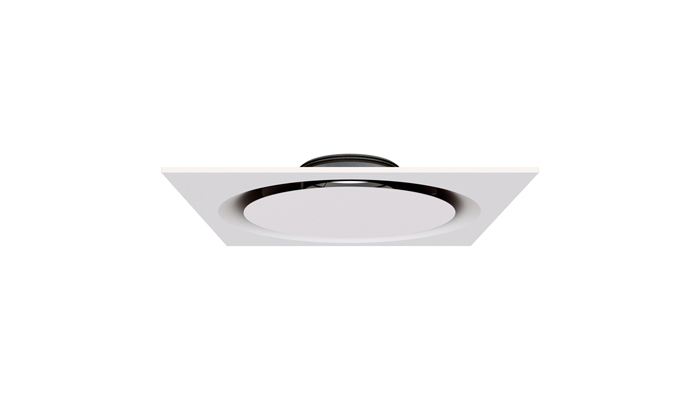

LCP is a flush-mounted square diffuser with a circular unperforated face plate for installation in ceiling systems. LKP has a square face plate and the same properties as LCP.
LCP/LKP can be used for both supply and extract air. LCP/LKP is suitable for the horizontal supply of cooled air and has a large dynamic range.
Installing an LCP/LKP diffuser in a plenum box type MB can help to achieve a stable airflow to the diffuser as well as realise the potential for individual adjustment.
Damper type B is an unique linear cone damper which allows to use the full operational area (0-100%) and allows to balance with a high pressure drop over the box with low sound generation. Furthermore the construction of the damper gives an accurate and reliable measurement.
Damper type C and E are with rotating blade dampers for respectively supply and extract. Typically used in applications that don’t require a high balancing pressure in the plenum box .
The LCP / LKP can with the plenum box MBBV be used in a Pascal system.
LCP / LKP can be ordered with a presence sensor (-P), a temperature sensor (-T), or both. The sensors are built into the Faceplate.
- Simple and stylish appearance
- Large dynamic range
- Can be used for both supply and extract air
- Can be adapted to most ceiling systems
- Plenum box with several damper options
